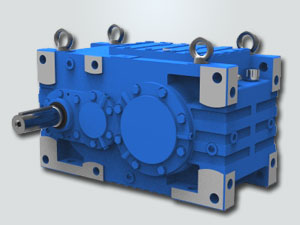

MC SERIES INDUSTRIAL GEARBOX

  • Housing: Casting Iron
  • Machine Base No.: 02 ~ 09
  • Input Power: 7.05 KW-1066 KW
  • Output Speed: 15.5-267.1 rpm
  • Output Torque: 8000 N.m-65000 N.m
  • Ratio: 7.1-112
  • Stage: 2-3 Stage
  • Color: Blue or Customized

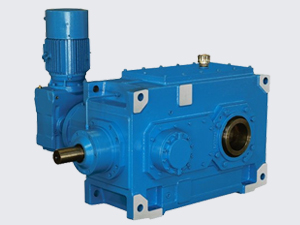

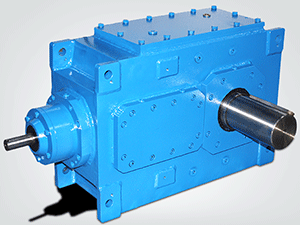

H,B SERIES INDUSTRIAL GEARBOXES/GEAR UNITS

  • Input Power: 1.5~4946kW
  • Ratio: 1.25~450
  • Input Speed: 1500,1000,750r/min
  • Output Speed: 1.7~1200r/min
  • Output Torque: Up to 900,000Nm
  • Shaft Positions: Parallel or Right Angle

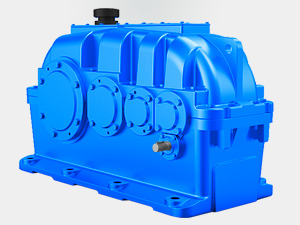

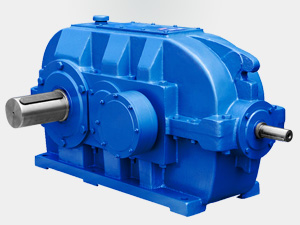

ZY SERIES PARALLEL SHAFT GEARBOXES

  • Center Distance: 80mm~710mm
  • Ratio: 1.25~500
  • Input Speed: 1500,1000,750r/min
  • Gearset: Cylindrical Helical Gears
  • Gear Hardness: HRC54-62
  • Installation Form: Horizontal
  • Shafts Position: Parallel Shaft

DY SERIES RIGHT ANGLE GEARBOXES

  • Center Distance: 160mm~800mm
    Ratio: 8~500
    Input Speed: 1500,1000,750r/min
    Gearset: Bevel Helical Gears
    Gear Hardness: HRC54-62
    Installation Form: Horizontal
    Shafts Position: Right Angle

BK SERIES BUCKET ELEVATOR GEARBOXES

  • Rated Power: 7.3~1508kW
  • Input Speed: 1500,1000,750r/min
  • Ratio: 25~71
  • Output Speed: 10.6~60r/min
  • Gear Arrangement: Bevel Helical Gearset
  • Shafts Position: Right Angle
  • Mounted: Horizontal Mounting
  • Housing: Cast Iron/Welding Steel Plate

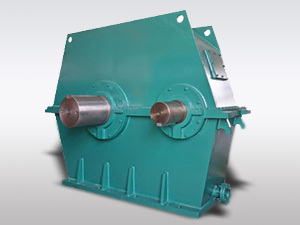

MBY/MBYX SERIES EDGE DRIVE MILL GEARBOXES

  • Rated Power: 200kW~5000kW
  • Ratio: 4:1~7.1:1
  • Center Distance: 400~1100mm
  • Gearset: Parallel Shaft Helical Gears
  • Shafts Position: Parallel Shaft
  • Mounted: Horizontal Mounting
  • Housing: Cast Iron,Steel Plate Welding

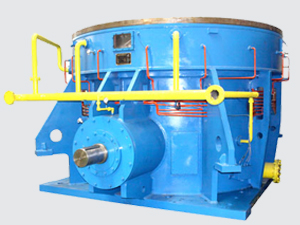

MLX SERIES VERTICAL MILL GEARBOXES

  • Rated Power: 50kW~9000kW
  • Ratio: Maximum i=80
  • Gearset: Bevel & Planetary Gears
  • Shafts Position: Right Angle
  • Mounted: Vertical Mounting
  • Housing: Cast Iron

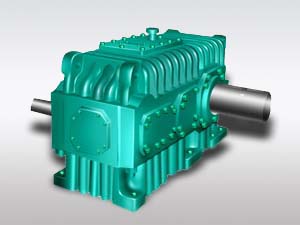

DP,DR SERIES HEAVY DUTY MODULAR GEAR REDUCERS

  • Input Speed: ≤1500r/min
  • Ratio: 1.25~400
  • Gear Tangential Velocity: ≤20m/s
  • Working Temperature: -40℃~45℃
  • Mounted: Horizontal or Vertical
  • Housing: Cast Iron
  • Shafts Position: Parallel,Right Angle

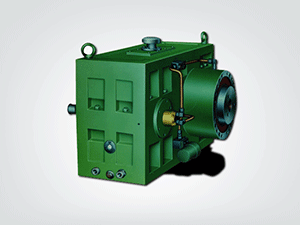

ZLYJ/ZSYJ, SZ SERIES EXTRUDER GEARBOXES

  • Center Distance: 112mm~800mm
  • Center Height: 130mm~630mm
  • Ratio: 6.3~100
  • Torque: 510~183,600N.m
  • Axial Force: 35~1200kN
  • Gear Hardness: HRC54-62
  • Shafts Position: Parallel Shafts
